Product introduction

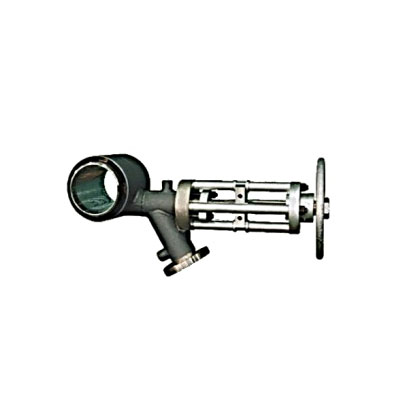

Jacketed sampling valve / drain valve A valve that can sample and discharge process media directly on the production pipeline, which can be used in high pressure and even high vacuum systems. The top end of the valve stem is designed to completely fit the inner wall of the pipe, ensuring that the valve does not pose any obstacle to the flow of process medium during the working process; the non-flange connection between the valve body and the main pipe can prevent the polymer from freezing in the valve body. . Regardless of vertical or horizontal valve type, the process pipeline can be completely drained. The process medium flows smoothly and smoothly.

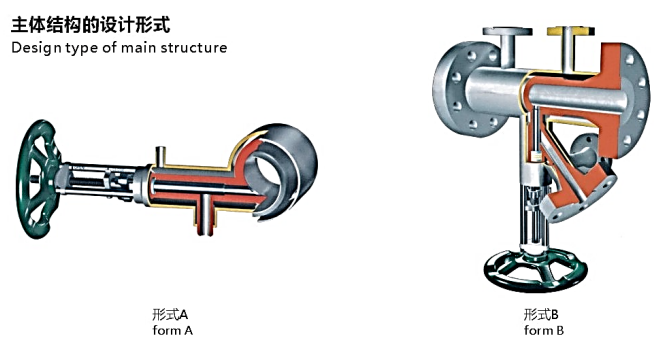

Organization chart
Technical Data Sheet
| Valve name | Jacketed sampling valve / drain valve |
| Valve design | ANSI B 16.34 |
| Valve diameter | DN25-DN400 1 ”-16” |
| Inner pipeline pressure level | 0.6-42MP 150LB-2500LB |
| Jacket pressure rating | 0.6-42MP 150LB-250LB |
| Design temperature of inner pipe | ≤320 ℃ |
| Jacket design temperature | ≤320 ℃ |
| Applicable medium for inner pipeline | Esters, prepolymers, melts, solutions |
| Jacketed tube suitable medium | Heat medium |
| Inner tube material | 304, 316, 304L, 316L |
| Jacket material | 304, 316 |
| Inspection and acceptance | PAISTD598 |
| Operation method | Manual, electric |
